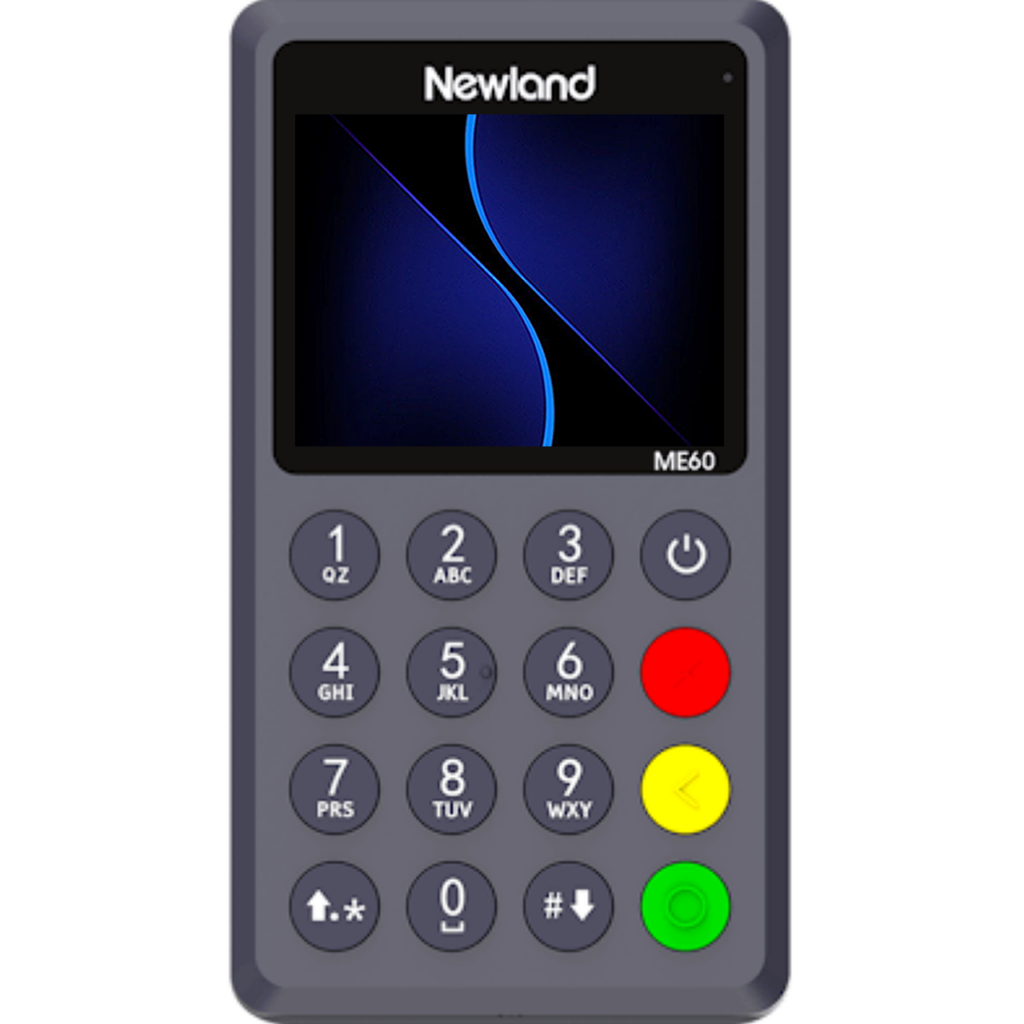

MiniPOS
ME60
MINI POS
Portable
Contactless
EMV
PCI PTS
Linux
- Accepts all payment types, from cards to mobile wallets
- Compact and slim-line ergonomics
- Powerful, high-performance architecture
- Multiple wireless communication options
| Operating System | Linux |
| Processor | 32-bit ARM Cortex-A7 secure processor, 1.2GHz |
| Memory | 256MB RAM, 256MB FLASH |
| Display | 2.4-inch TFT full color LCD display, resolution of 320 x 240 |
| Wireless Communication | 4G/3G/2G |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conformingto ISO 7816, 1.8V/3.3V/ 5V, synchronous& asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica |
| Audio | Built-in buzzer, supports key tone and transaction reminder |
| Keypad | 10 x alphanumeric keys, 5 x function keys, 1 x Power button |
| Peripheral Ports | 1 x Type-C port for charging and communication |
| Card Slots | 2 x Mini SIM |
| Battery | Li-ionbattery, 3.8V/2000mAh/7.6Wh |
| Power Supply | 5.0V DC, 1.0A |
| Dimensions | 121mm (L) x 68mm (W) x 16.8mm (H) |
| Weight | 163g including battery |
| Environment | Operating temperature: 0℃～40℃ (32℉~104℉) Storage temperature: -20℃～60℃ (-4℉~140℉) Relative humidity: 5%～93% (Non-condensing) |
| Certifications | PCI PTS 6.x, EMV L1/L2, EMV ContactlessL1, PayPass, payWave, American ExpressPay, DiscoverD-PAS, UnionPayQuickPass, JCB, TQM, CE, RoHS |
