MiniPOS

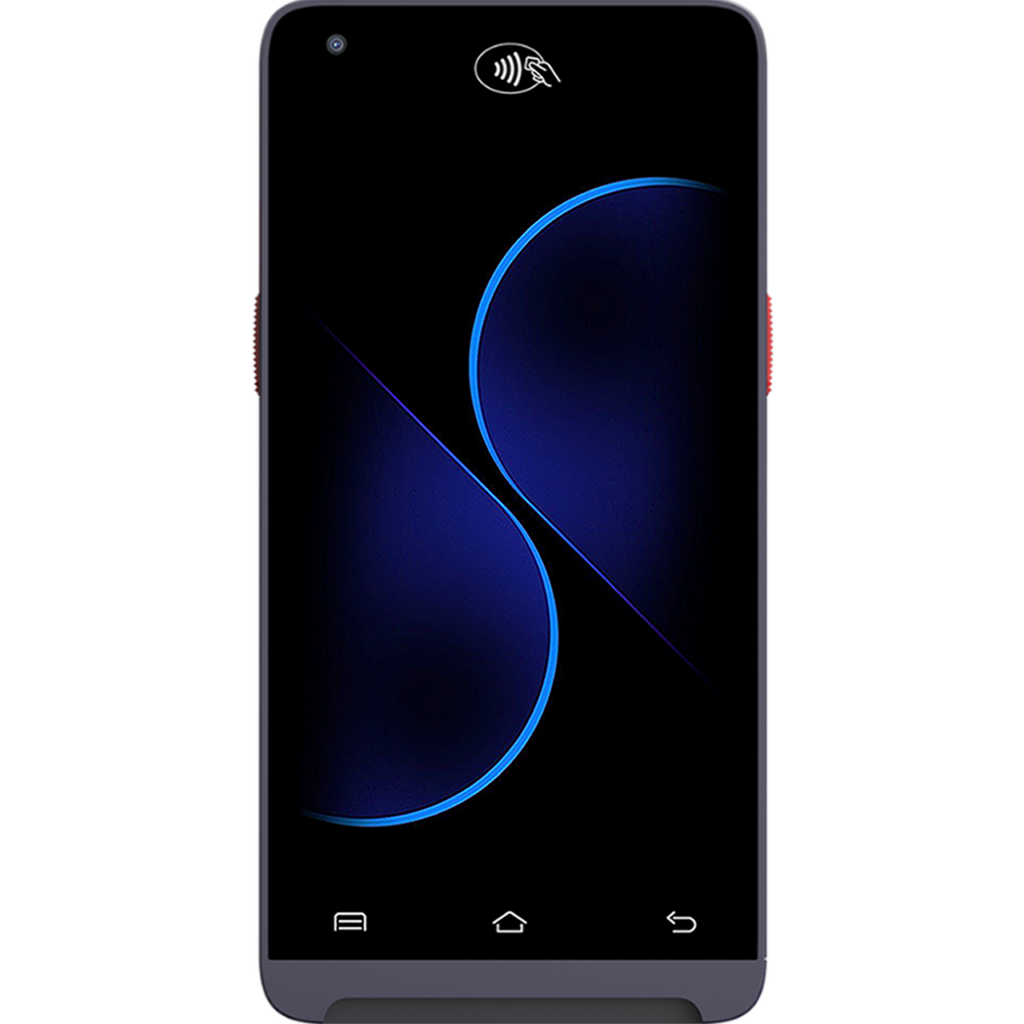

N750
MOBILE SMARTPOS
Portable
Contactless
EMV
PCI PTS
Android
Wi-Fi
- Designed to transform customer interaction in-store or on the go
- Compact, slim and light
- Professional item code scanner
- Unprecedented performance
| Operating System | Android 12 |
| Processor | AP: CortexQuad-core A53, 2.0GHz SP: Cortex-M3 securitycore |
| Memory | 2GB RAM, 16GB FLASH 4GB RAM, 64GB FLASH (optional) MicroSD card slot up to 256GB |
| Display | 5-inch TFT full color LCD display, resolution of 1280 x 720, capacitive multi-touch screen, support electronic signature |
| Wireless Communication | 4G / 3G / 2G | Wi-Fi (802.11 a/b/g/n/ac) 2.4G & 5G, Bluetooth 5.0 |
| Positioning | GPS/BEIDOU/GLONASS |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1 |
| Contactless Card Reader | Under-screen contactless solution, EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica |
| Camera | 0.3 MP frontcamera, support1D/2D code payment 5MP autofocusrearcamera, support1D/2D code payment |
| Audio | 1 x Speaker, 1 x Microphone, support audio recording and media play |
| Keypad | Secure virtual keypad for PIN entry, 1 x power button, 2 x function buttons, 5 x Pogo Pins |
| Peripheral Ports | 1 x Type C port (OTG) |
| Card Slots | 1 x SIM, 1 x SAM | 2 x SIM (optional) |
| Battery | Li-ionbattery, 3.8V/3600mAh/13.68Wh | Li-ionbattery, 3.8V/5200mAh/19.76Wh (optional) |
| Power Supply | Input: 100-240V AC 50/60Hz Output: 5.0V DC, 2.0A |
| Dimensions | 3600 mAh: 150mm (L) x 74mm (W) x 16.8mm (H); The thickest part of the swiping card place is 18.8mm 5200 mAh: 150mm (L) x 74mm (W) x 18.8mm (H) |
| Weight | 245g including 3600mAh battery 270g including 5200mAh battery |
| Environment | Operatingtemperature: -10℃～50℃ (14℉~122℉) Storage temperature: -20℃～60℃ (-4℉~140℉) Relativehumidity: 5%～93% (Non-condensing) |
| Certifications | PCI PTS 6.x, EMV L1/L2, EMV ContactlessL1, PayPass, payWave, American ExpressPay, DiscoverD-PAS, UnionPayQuickPass, TQM, CE, CB, RoHS, JCB, Felica, FCC |
