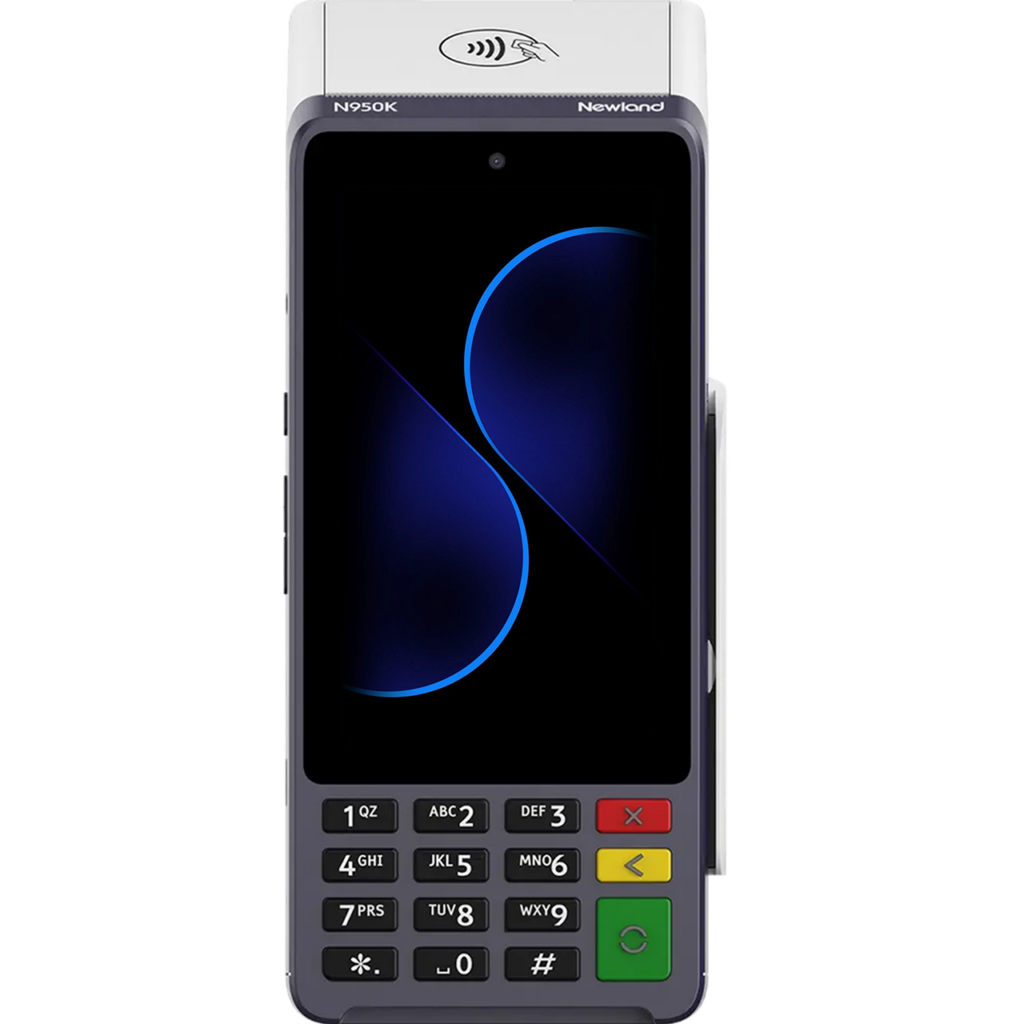

N950K – NewNote Solutions

Operating System

Android 12

Memory

1GB RAM, 8GB FLASH
Micro SD card slot up to 256GB

Wireless Communication

4G / 3G / 2G | Wi-Fi (802.11 b/g/n/) 2.4G, Bluetooth 4.2

Magnetic Card Reader

Triple track, bi-directional, conforming to ISO 7810/7811/7813

Contactless Card Reader

EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica

Audio

1 x Speaker, 1 x Microphone, support audio recording and media play

Printer

High-speed thermal printer, 80mm/s | Paper roll diameter: 40mm | Paper width: 58mm

Card Slots

2 x SIM, 2 x SAM, 1 x SD

Power Supply

Input: 100-240V AC 50/60Hz
Output: 5.0V DC, 2.0A

Dimensions

187mm (L) x 80.2mm(W) x 63mm(H)

Environment

Operating temperature: -10℃～50℃ (14℉~122℉)
Storage temperature: -20℃～60℃ (-4℉~140℉)
Relative humidity: 5%～93% (Non-condensing)

Operating System	Android 12
Processor	AP: Cortex Quad-core A53, 1.4GHz SP: ARMv7-M security core
Memory	1GB RAM, 8GB FLASH Micro SD card slot up to 256GB
Display	4.5-inch TFT full color LCD display, resolution of 854 x 480, with adjustable backlight, capacitive multi-touch screen, support electronic signature
Wireless Communication	4G / 3G / 2G \| Wi-Fi (802.11 b/g/n/) 2.4G, Bluetooth 4.2
Positioning	GPS/BEIDOU/GLONASS
Magnetic Card Reader	Triple track, bi-directional, conforming to ISO 7810/7811/7813
Smart Card Reader	EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1
Contactless Card Reader	EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica
Camera	0.3 MP frontcamera, support1D/2D codepayment 2 MP autofocus rear camera with flashlight, support 1D/2D code payment
Audio	1 x Speaker, 1 x Microphone, support audio recording and media play
Keypad	Adjustable Backlight, 10 x numeric keys, 5 x function keys, 1 x power button, 1 x VOL+,1 x VOL
Printer	High-speed thermal printer, 80mm/s \| Paper roll diameter: 40mm \| Paper width: 58mm
Peripheral Ports	1 x Type C port, 1 x DC Jack
Card Slots	2 x SIM, 2 x SAM, 1 x SD
Battery	Li-ion battery, 7.2V/2600mAh/18.7Wh (Equal to 3.6V/5200mAh)
Power Supply	Input: 100-240V AC 50/60Hz Output: 5.0V DC, 2.0A
Docking Station	Charging base (optional)
Dimensions	187mm (L) x 80.2mm(W) x 63mm(H)
Weight	433g including battery
Environment	Operating temperature: -10℃～50℃ (14℉~122℉) Storage temperature: -20℃～60℃ (-4℉~140℉) Relative humidity: 5%～93% (Non-condensing)
Certifications	EMV L1, EMV CL1, PCI 6.x, EMV L2, PayPass, PayWave, ROHS, TQM, AMEX, QuickPass, D-PAS, ANATEL, ABECES, CE, CB
