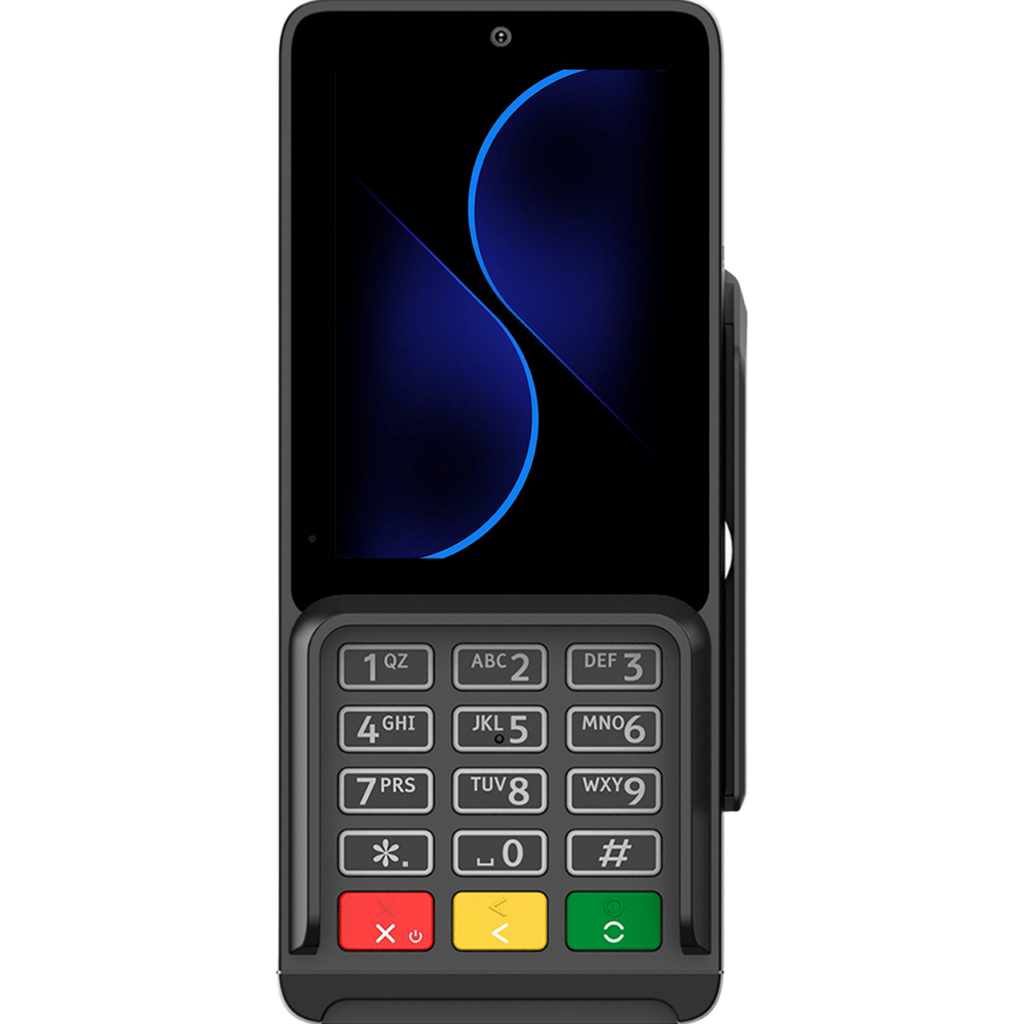

PIN Pad
P180
RETAIL PIN PAD
Contactless
EMV
PCI PTS
Linux
Wi-Fi
- Customer-facing pinpad integrated with ECR
- 3.5-inch capacitive touchscreen
- 2MP Customer-facing Camera
- PCI PTS 6.x
| Operating System | Linux |
| Processor | Dual-core CortexA7, 1GHz + Secure Processor |
| Memory | 256MB RAM, 256MB FLASH Micro SD (up to 32GB) |
| Display | 3.5-inch TFT full color LCD display, resolution of 320 x 480 Capacitive touchscreen, support electronic signature |
| Communication | RS232 | USB Devise Ethernet 10/100M | WIFI 2.4GHz/5GHz (both optional) |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica, HCE |
| Camera | 2M pixels |
| Audio | Speaker 1.5W (optional) |
| Keypad | 10 x numeric keys | Backlight | 5 x function keys (Cancel(include ON/OFF )、Enter backspace、*、#) |
| Accessories | Kensington lock Privacy Shield | Rotatable mount | Customizable multifunction cable (all optional) |
| Card Slots | 2 x SAM |
| Power Supply | Input: AC 100~240V Output: DC 5V/2A PUSB (optional) |
| Dimensions | 163mm (L) x 74mm (W) x 31mm (H) Without Privacy Shield 163mm (L) x 74mm (W) x 46mm (H) With Privacy Shield |
| Weight | NET weight 252g. Gross weight 713g |
| Environment | Operating temperature: -10℃～50℃ (14℉~122℉) Storage temperature: -20℃～70℃ (-4℉~158℉) Relative humidity: 5%～95% (Non-condensing) |
| Certifications | PCI PTS 6.x, EMV L1/L2, EMV ContactlessL1, PayPass, payWave，American Expresspay, DiscoverD-PAS, AMEX，QuickPass，TQM，RoHS，CE，ANATEL, ABECS，FCC，JCB，UPTS 3.0 |
