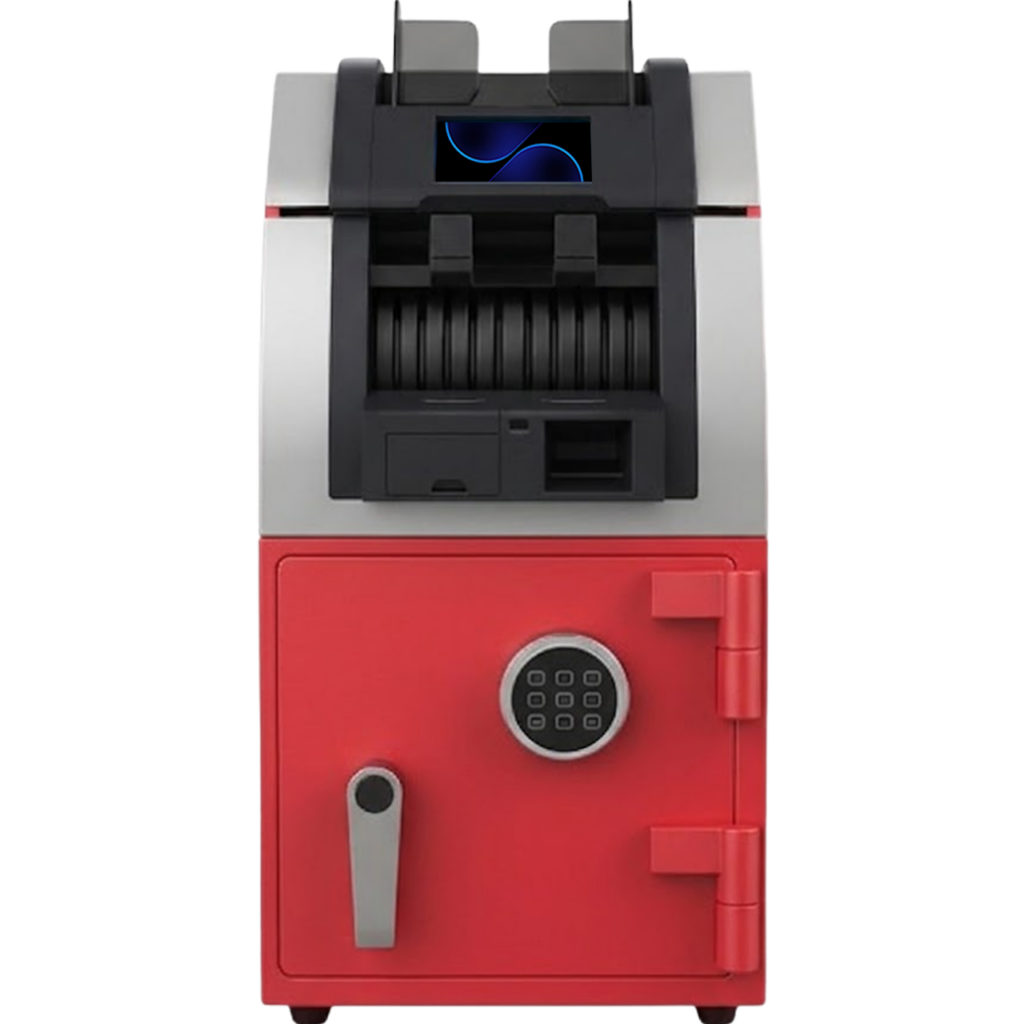

P2600S – NewNote Solutions

Controlling Unit

Intel H61/H81/Q87,support Core i3/i5/i7 CPU, 256Gb SSD, Max. 32GB memory, DVD-RW | Windows® 7/10/11 | TPM2.0

Communication

Standard TCP-IP connection

Card Reader

Receipt Printer

80mm 203DPI graphical thermal printer | Capture and retract capability

Maintenance

10.4'' LCD service panel with touch screen (available on rear access model)
Front, rear and side access

Controlling Unit	Intel H61/H81/Q87,support Core i3/i5/i7 CPU, 256Gb SSD, Max. 32GB memory, DVD-RW \| Windows® 7/10/11 \| TPM2.0
Display	15’’ TFT color LCD with touch screen \| Privacy filter \| Advertisement display light panel (opt.)
Communication	Standard TCP-IP connection
Keypad	4*4 metal encryption PIN pad \| Dust proof/water proof/vandal resistant \| PCI5.x compliant \| EMV certified
Card Reader	Motorized card reader \| DIP card reader (opt.) \| Contactless smart card reader/writer (opt.) \| EMV Level 1 and Level 2 compliant \| Anti-skimming design \| Card return on power failure (opt.) \| Retract card capacity: max 30 cards (opt.)
Banknote Processing Unit	High-speed bulkdispenser: Dispensingspeed: 7 notes per second\| Max. 60 notes per transaction\| Upto 4 cassettes\| Cassettecapacity: max. 3,500 notes Reject/Retractcapacity: max. 300 notes
Receipt Printer	80mm 203DPI graphical thermal printer \| Capture and retract capability
Security	Electronic lock \| Mechanical key lock \|UL & CEN Safe \| PCI 5.x compliant EPP \| PIN Pad shield \| Customer awareness mirror \| EMV Level 1 certified card reader \| Anti-Skimming electromagnetic interference device \| Anti-jackpotting features
Maintenance	10.4'' LCD service panel with touch screen (available on rear access model) Front, rear and side access
Environment	Indoor: 0℃～40℃(32℉~104℉) Outdoor: -10℃～50℃ (14℉~122℉) (with optional heating unit) Relative humidity: 20%to 95% (non-condensing)
