Unattended

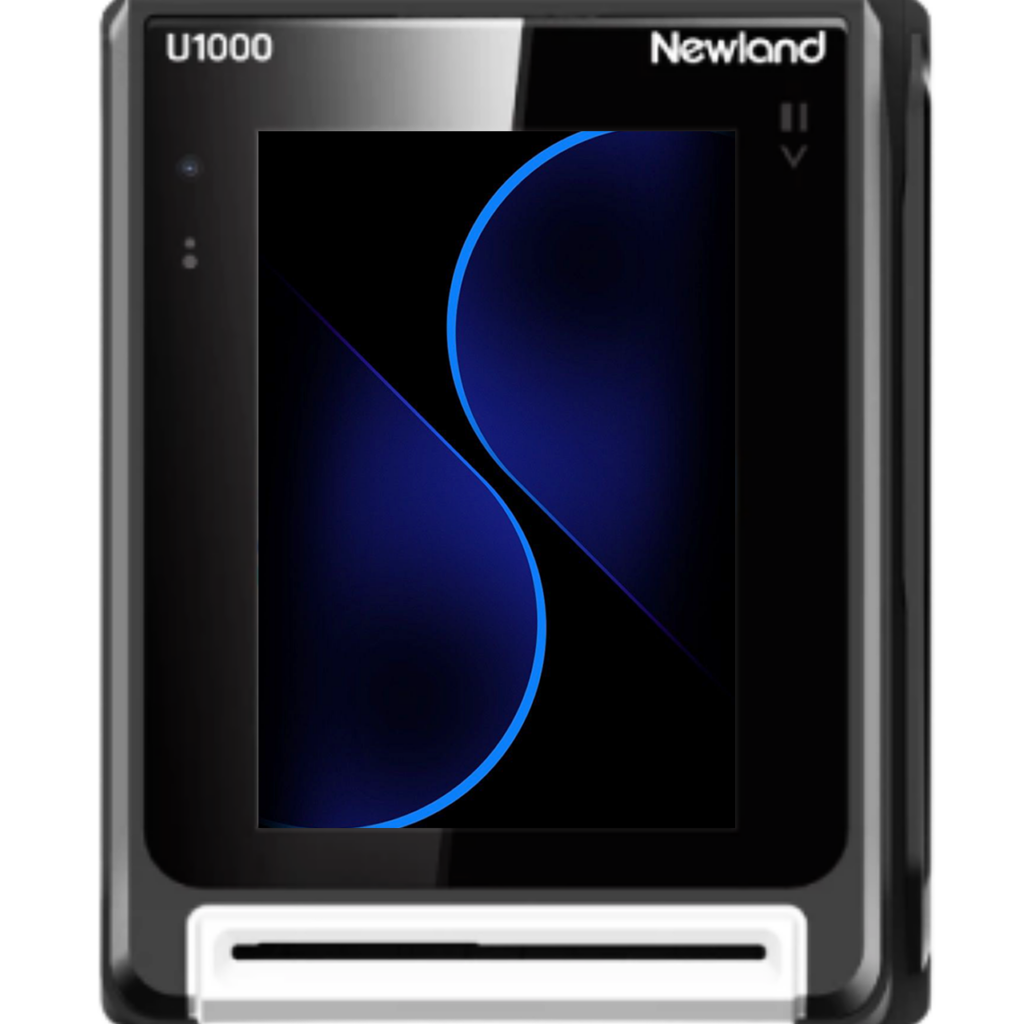

U1000
UNATTENDED TERMINAL
Contactless
EMV
PCI PTS
Linux
Wi-Fi
- Modular payment solution for self-service kiosks
- Ultra interactive touch experience
- Vandal resistance (IK10)
- Diverse peripheral connectivity
| Operating System | Linux |
| Processor | 32-bit Cortex-A9 secure processor |
| Memory | 128MB RAM, 128MB FLASH MicroSD card slot up to 32GB |
| Display | 3.5- inch TFT full color LCD display, resolution of 320 x 480, capacitive multi-touch screen |
| Wireless Communication | 4G | 3G | WIFI (802.11 b/g/n) | Bluetooth (all optional) |
| Wired Communication | Ethernet 10/100 Base -T |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica |
| Scanner | Support 1D/2D code payment (opt.) |
| Audio | Built-in buzzer |
| Keypad | Secure virtual keypad for PIN entry, 2 x control buttons on the back |
| Physical Protection | IP56* and IK10 approved (*The IC card slot is not subjected to the test.) |
| Peripheral Ports | 1 x USB-A (Host),1 x USB-B (Device), 1 x LAN, 1 x MDB, 1 x RS232, 1 x SMA (opt.) |
| Card Slots | 1 x SIM (opt.) | 2 x SAM |
| Power Supply | MDB port: 10V-45V |
| Dimensions | 107mm(L) x 86mm(W) x 64mm (H) |
| Weight | 460g |
| Environment | Operating temperature: -20℃~+70℃ (-4℉~158℉) Storage temperature: -30℃~+70℃ (-22℉~158℉) Relative humidity: 5%~93% (Non-condensing) |
| Certifications | PCI PTS 6.x, EMV L1/L2, EMV ContactlessL1, PayPass, payWave, American ExpressPay, DiscoverD-PAS, UnionPayQuickPass, TQM, CE, RoHS, MCCS, Rupay, Interac, JCB, ATEX |
