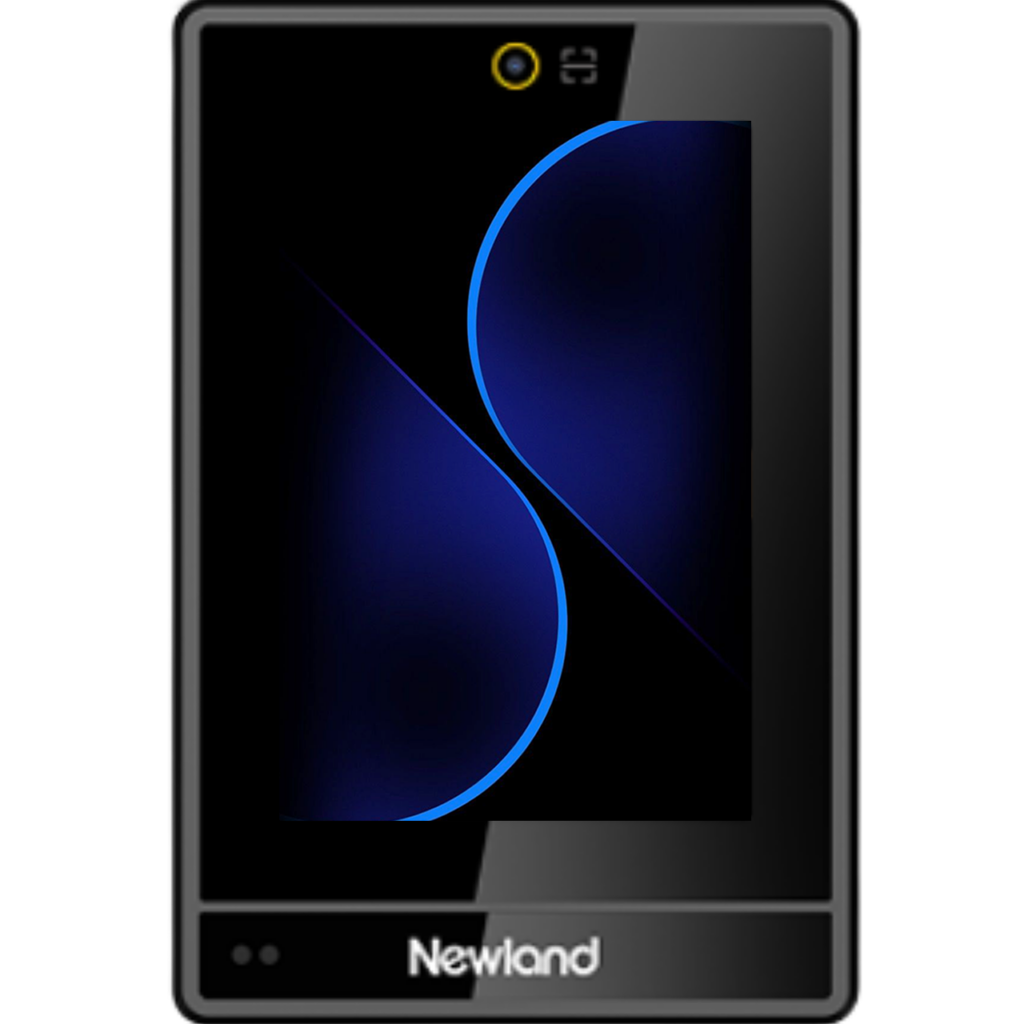

U200 – NewNote Solutions

Operating System

Android 12

Memory

2GB RAM, 16GB FLASH

Wireless Communication

4G / 3G / 2G (optional)
Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0

Positioning

GPS, GLONASS,BEIDOU, GALILEO, QZSS（In the case of without 4G/3G/2G，Without Positioning) (optional)

Contactless Card Reader

EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica

Audio

1 x Speaker

Water & Dust Proof

IK09, IP65

Card Slots

1 x SAM
1 x SIM（In the case of without 4G/3G/2G，Without SIM card slot) (optional)

Anti-demolition

Back anti-demolition design (optional)

Power Supply

7V-48V DC via MDB Slave or RS232

Weight

262g

Certifications

EMV CL1、PCI 7.x、PayPass、PayWave、CE、FCC、ROHS、TQM、AMEX、QuickPass、D-PAS、ATEX，JCB

Operating System	Android 12
Processor	AP: Cortex Quad-core A53, 2.0GHz SP: Cortex-M3 security core
Memory	2GB RAM, 16GB FLASH
Display	3.5-inch, resolution of 480*320, capacitive multi-touch screen, anti-fingerprint(AF), anti-glare (AG)
Wireless Communication	4G / 3G / 2G (optional) Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0
Wired Communication	Ethernet 10/100 Base - T
Positioning	GPS, GLONASS,BEIDOU, GALILEO, QZSS（In the case of without 4G/3G/2G，Without Positioning) (optional)
Smart Card Reader	EMV L1/L2, conforming to ISO 7816, 1.8V/3V/ 5V, synchronous & asynchronous, T=0 & T=1 (optional)
Contactless Card Reader	EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica
Camera	2MP front camera , support 1D/2D code payment
Audio	1 x Speaker
Keypad	Secure virtual keypad for PIN entry, 2 x buttons on the back
Water & Dust Proof	IK09, IP65
Peripheral Ports	1 x USB Type-A (Host) 1 x USB Type-C (Slave) (used for downloading only) 1 x RS232& PULSE (RJ45) 1 x LAN (RJ45) 1 x MDB Slave
Card Slots	1 x SAM 1 x SIM（In the case of without 4G/3G/2G，Without SIM card slot) (optional)
Sensor	TOF Sensor (optional)
Anti-demolition	Back anti-demolition design (optional)
LCD Heating Module	Low temperature heating design for cold weather operation (optional)
Power Supply	7V-48V DC via MDB Slave or RS232
Dimensions	111.72mm x 74.56mm x 35.6mm
Weight	262g
Environment	Operating temperature: -20℃～+70℃ (-4℉~158℉) without Heating Design -30℃～+70℃ (-22℉~158℉) with Heating Design Storage temperature: -30℃～+70℃ (-22℉~158℉) Relative humidity: 5%～95% (Non-condensing)
Certifications	EMV CL1、PCI 7.x、PayPass、PayWave、CE、FCC、ROHS、TQM、AMEX、QuickPass、D-PAS、ATEX，JCB
