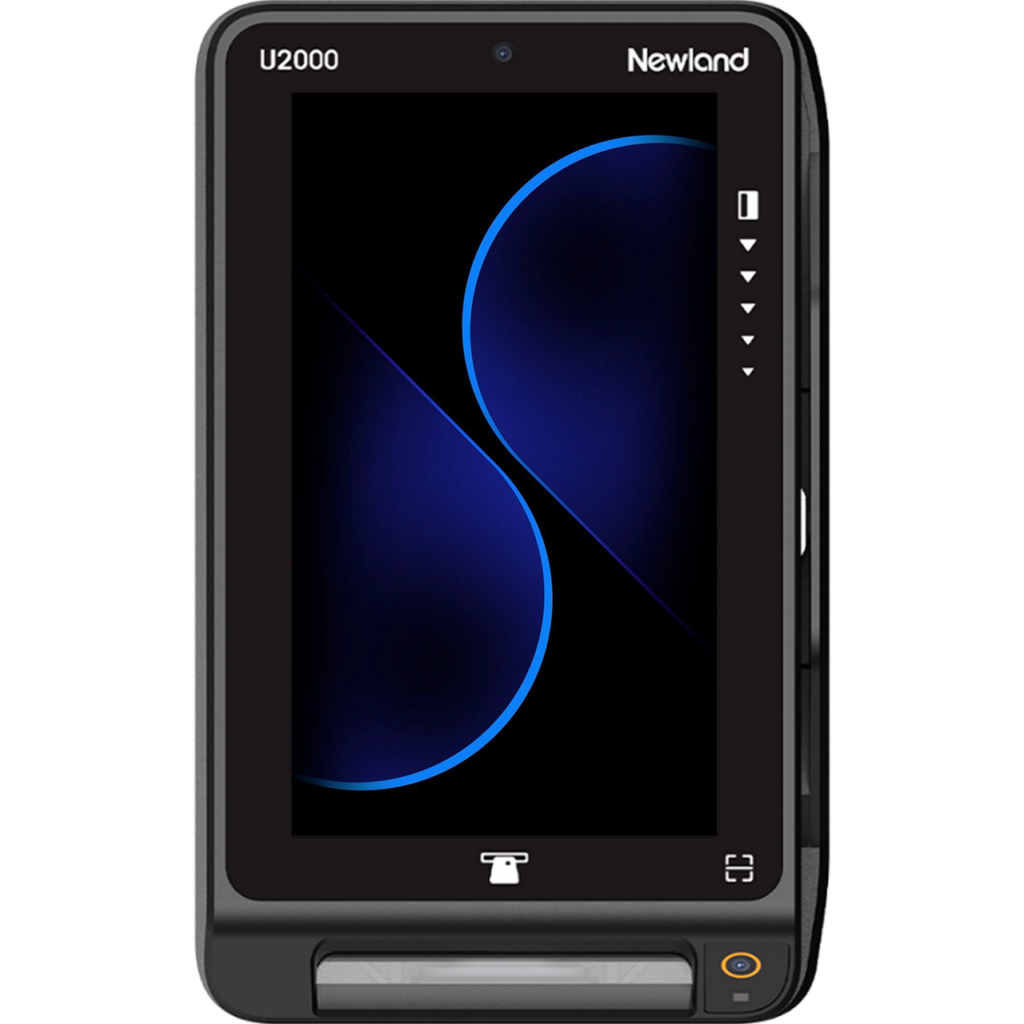

U2000 – NewNote Solutions

Operating System

Android 12

Memory

2GB RAM, 16GB FLASH
Micro SD card slot up to 256GB

Wireless Communication

4G / 3G / 2G | WIFI (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0

Positioning

GPS, GLONASS,BEIDOU, GALILEO, QZSS

Smart Card Reader

EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1

Camera

2MP front camera, support1D/2D code payment | 2MP QR camera, support1D/2D code payment

Keypad

Secure virtual keypad for PIN entry, 2 x buttons on the back

Peripheral Ports

1 x USB Type-A (Host); 1 x USB Type-C (Slave) (used for downloading only)| 2 x RS232 (RJ45); 1 x LAN (RJ45) | 1 x MDB Master & Executive ; 1 x MDB Slave | 1 x 3.5mm audio jack; 1 x SMA (4G)

Sensor

Light sensor | Microwaveradar sensor

Dimensions

151.5mm (L) * 94mm (W) * 51.4mm (H)

Environment

Operating temperature: -20℃～+70℃ (-4℉~158℉)
Storage temperature: -30℃～+70℃ (-22℉~158℉)
Relative humidity: 5%～93% (Non-condensing)

Operating System	Android 12
Processor	AP: CortexQuad-core A53, 2.0GHz SP: Cortex-M4F security core
Memory	2GB RAM, 16GB FLASH Micro SD card slot up to 256GB
Display	5-inch, resolution of 720*1280, capacitive multi-touch screen, anti-fingerprint(AF), anti-glare (AG), support operation with glove
Wireless Communication	4G / 3G / 2G \| WIFI (802.11 a/b/g/n/ac) 2.4G&5G, Bluetooth 2.1/5.0
Wired Communication	Ethernet 10/100 Base -T
Positioning	GPS, GLONASS,BEIDOU, GALILEO, QZSS
Magnetic Card Reader	Triple track, bi-directional, conforming to ISO 7810/7811/7813
Smart Card Reader	EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1
Contactless Card Reader	EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare, Felica
Camera	2MP front camera, support1D/2D code payment \| 2MP QR camera, support1D/2D code payment
Audio	1 x Speaker
Keypad	Secure virtual keypad for PIN entry, 2 x buttons on the back
Water & Dust Proof	IK10, IP65
Peripheral Ports	1 x USB Type-A (Host); 1 x USB Type-C (Slave) (used for downloading only)\| 2 x RS232 (RJ45); 1 x LAN (RJ45) \| 1 x MDB Master & Executive ; 1 x MDB Slave \| 1 x 3.5mm audio jack; 1 x SMA (4G)
Card Slots	2 x SAM \| 2 x SIM
Sensor	Light sensor \| Microwaveradar sensor
Power Supply	MDB port/RS232-A/MDB-M&EXE: 12V-48V DC\| MDB-M&EXE: support 24V AC
Dimensions	151.5mm (L) * 94mm (W) * 51.4mm (H)
Weight	520.7g (Without HDMI) \| 525.2g (With HDMI)
Environment	Operating temperature: -20℃～+70℃ (-4℉~158℉) Storage temperature: -30℃～+70℃ (-22℉~158℉) Relative humidity: 5%～93% (Non-condensing)
Certifications	EMV L1 \| EMV CL1 \| TQM \| PCI 6.X \| EMV L2 \| D-PAS \| AMEX \| QuickPass\| PayPass\| PayWave\| RoHS\| CE \| ATEX \| FeliCa\| JCB \| TQM
