Unattended

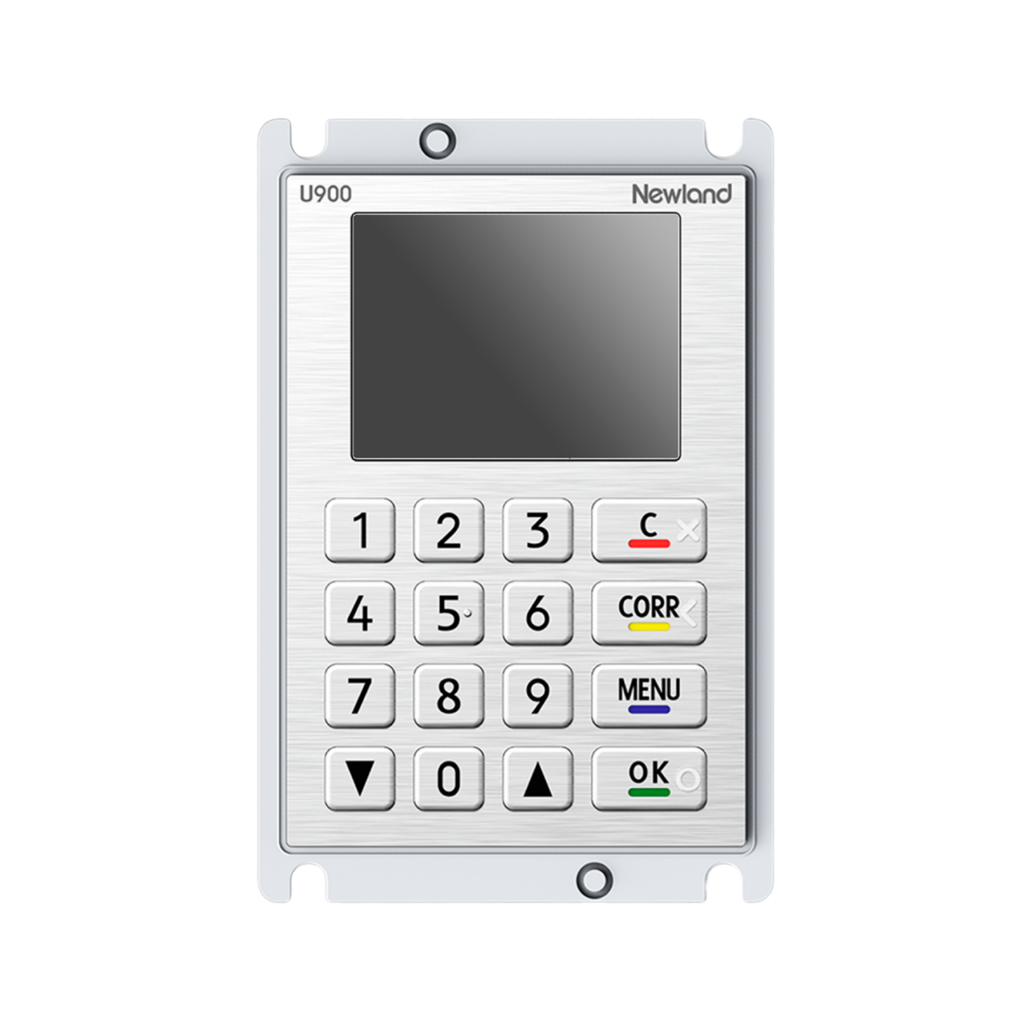

U900
UNATTENDED TERMINAL
Contactless/NFC
EMV
PCI PTS 6x
Linux
Wi-Fi
Bluetooth
Ethernet
- Modular payment solution for self-service kiosks
- Heavy-duty and robust design (IP65)
- High-level vandal resistance (IK09)
- Multiple communication and integration interfaces
| Operating System | Linux |
| Processor | 32-bit high performance secure processor |
| Memory | 128MB RAM, 128MB FLASH |
| Display | 2.8-inch full color LCD display, resolution of 320 x 240 |
| Wireless Communication | Wi-Fi (802.11 b/g/n) | Bluetooth 2.1/4.2 (both optional) |
| Wired Communication | Ethernet 10/100 Base -T |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 (optional) |
| Smart Card Reader | Conformingto ISO 7816, 1.8V/3V/ 5V, synchronous & asynchronous, T=0 & T=1 (optional) |
| Contactless Card Reader | EMV Contactless L1, Conforming to ISO 14443 Type A/B, Mifare, Felica |
| Audio | IP65 and IK09 |
| Keypad | 10 x numeric keys, 6 x function keys, Metal keypads |
| Physical Protection | IP65 and IK09 |
| Peripheral Ports | 1 x USB-A (Host),1 x USB-B (Device), 1 x LAN, 1 x MDB, 4 x RS232(RJ45), 2 x SMA |
| Card Slots | 1 x SAM |
| Power Supply | 12V ~ 45V DC |
| Dimensions | 143mm (L) | 92mm (W) | 44mm (H) |
| Weight | 467g |
| Environment | Operating temperature: -20℃ ~ +65℃ (-4℉~149℉) Storage temperature: -20℃ ~ +70℃ (-4℉~158℉) Relative humidity: 95% Maximumnon-condensating |
| Certifications | PCI PTS 6.x | EMV Contactless L1 | PayPass | payWave| AmericanExpressPay | DiscoverD-PAS | QuickPass | TQM | EMV Level 2 |
