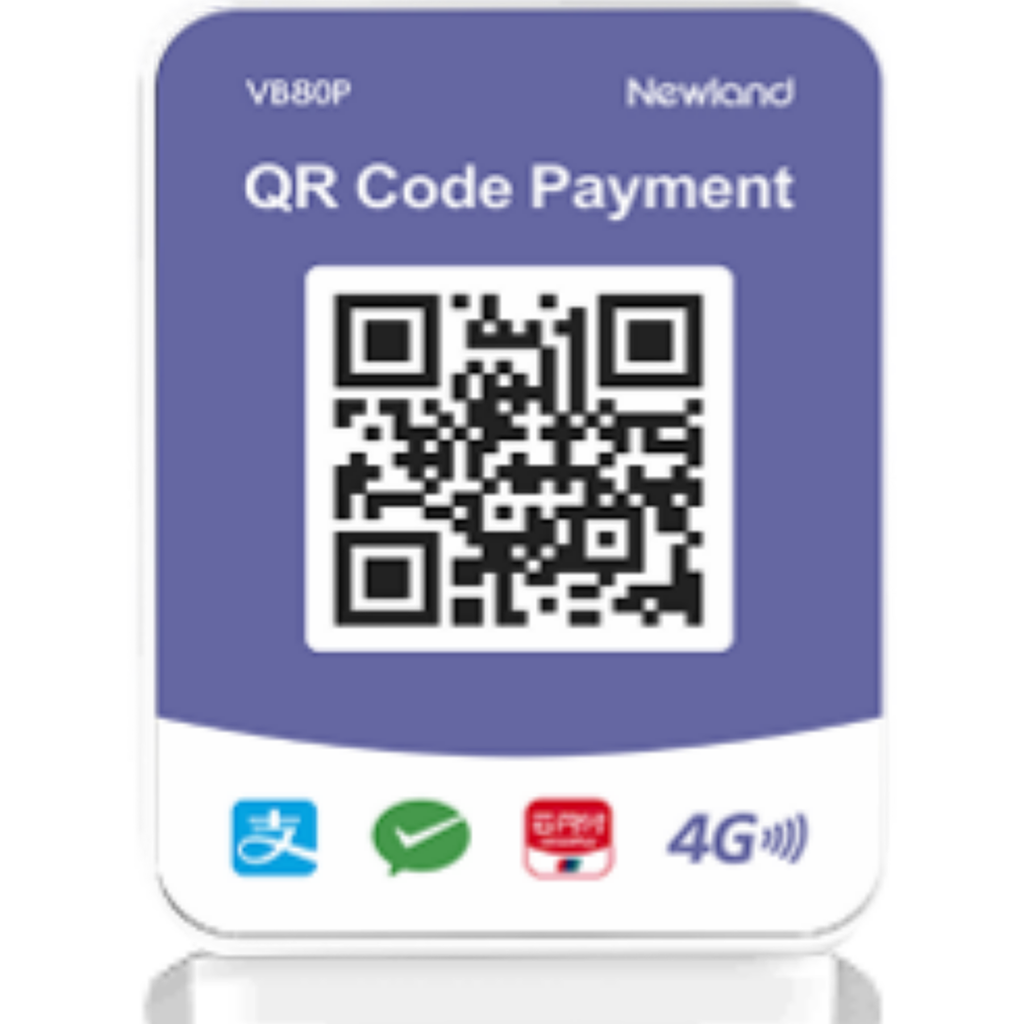

VB80P – NewNote Solutions

CPU

32-bit high performance secure processor

Display

Amount Screen: Display 6-digit amount, signal, power, time, and the number of receipts on the day (opt.)
Dynamic Code Screen: 2.4-inch color LCD display, support displaying dynamic payment QR code (opt.)

Indicator

Status indicator (green, red, blue)

Keypad

1 x powerbutton, 1 x VOL+, 1 x VOL-, 1 x functionbutton, 1 x resetslot

Battery

Li-ion battery, 3.7V 2000mA

Power Supply

Input: AC100~240V/0.3A 50/60Hz (opt.)
Output: DC5.0V/1.0A (opt.)

Environment

Operating temperature: 0℃～50℃(32℉~122℉)
Storage temperature: -20℃～60℃(-4℉~140℉)
Relative humidity: 5%～95% (Non-condensing)

CPU	32-bit high performance secure processor
Memory	Large capacity memory
Display	Amount Screen: Display 6-digit amount, signal, power, time, and the number of receipts on the day (opt.) Dynamic Code Screen: 2.4-inch color LCD display, support displaying dynamic payment QR code (opt.)
Wireless Communication	4G \| 2G \| Wi-Fi (opt.)
Indicator	Status indicator (green, red, blue)
Audio	Voice Broadcast: Support preset voice files Loudspeaker: 1 x loudspeaker, clear and bright sound
Keypad	1 x powerbutton, 1 x VOL+, 1 x VOL-, 1 x functionbutton, 1 x resetslot
Peripheral Ports	1 x Type C port, 1 x SIM
Battery	Li-ion battery, 3.7V 2000mA
Charging Cable	USB charging cable
Power Supply	Input: AC100~240V/0.3A 50/60Hz (opt.) Output: DC5.0V/1.0A (opt.)
Installation Methods	Support base and wall-mounted methods
Environment	Operating temperature: 0℃～50℃(32℉~122℉) Storage temperature: -20℃～60℃(-4℉~140℉) Relative humidity: 5%～95% (Non-condensing)
