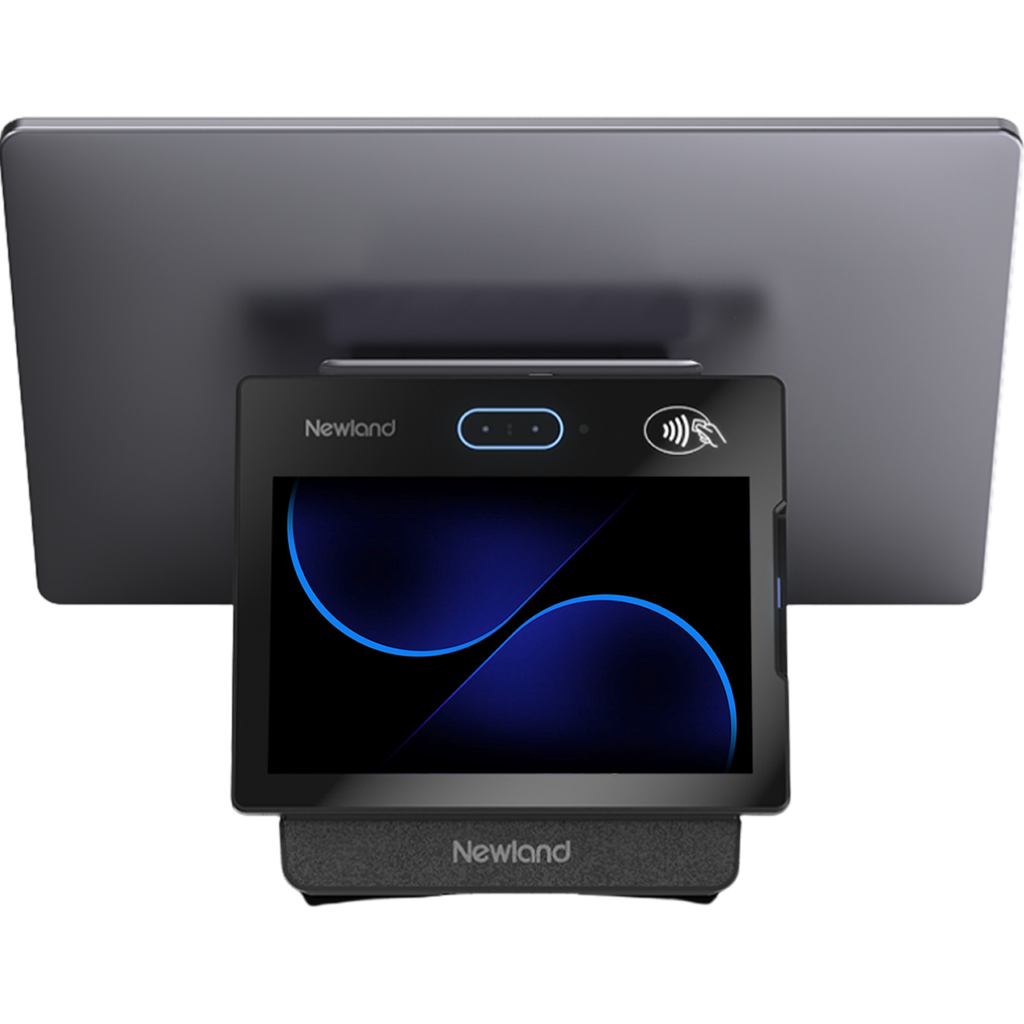

X70 – NewNote Solutions

Operating System

Android 14

Memory

4GB LPDDR4X+ 64GB eMMC
8GB LPDDR4X+128GB eMMC (optional)
MicroSD card slot up to 512GB

Customer Display

8 inch IPS (1280 x 800) Capacitive touch screen（P70 Payment Tablet) (optional)

Wired Communication

RJ45-Ethernet 10/100M/1000M

Camera

Front Camera FF 2MPFF 5MP (optional)；FF 8MP (optional)

Audio

Speaker 2W*2 ; Microphone *2

Peripheral Ports

RJ12*1(Cash Drawer)
RJ45*1
USB TYPE A*4(USB 2.0*3+USB 3.0*1)
USB TYPE C*3(Power+USB 3.0*1+USB 2.0*1)
Pogopin *3(2*8pin USB 3.0*1+1*8pin USB 2.0*2)

Power Supply

Input: 100-240V AC 50/60Hz
Output: 20V, 3.25A

Weight

2550g

Certifications

GMS, FCC, CE, CB, ROHS, EN18031

Operating System	Android 14
Processor	Quad-core Cortex A73，2.4GHz + Quad-core Cortex A53，1.9GHz
Memory	4GB LPDDR4X+ 64GB eMMC 8GB LPDDR4X+128GB eMMC (optional) MicroSD card slot up to 512GB
Display	15.6 inch IPS （1920x1080）Capacitive touch screen
Customer Display	8 inch IPS (1280 x 800) Capacitive touch screen（P70 Payment Tablet) (optional)
Wireless Communication	Wi-Fi (802.11 a/b/g/n/ac) 2.4GHz&5GHz Bluetooth 2.1 + EDR/ 3.0/ 4.1 LE/ 4.2 BLE/ 5.0 LE 4G / 3G / 2G
Wired Communication	RJ45-Ethernet 10/100M/1000M
Positioning	GPS/GLONASS/BDS/Galileo
Camera	Front Camera FF 2MPFF 5MP (optional)；FF 8MP (optional)
Fingerprint	MOH 80*64
Audio	Speaker 2W2 ; Microphone 2
Keypad	Virtual keypad, Power button *1
Peripheral Ports	RJ121(Cash Drawer) RJ451 USB TYPE A4(USB 2.03+USB 3.01) USB TYPE C3(Power+USB 3.01+USB 2.01) Pogopin 3(28pin USB 3.01+18pin USB 2.0*2)
Card Slots	Nano SIM 2; Micro SD 1; (Can only hold 2 cards) eSim*1 (optional)
Power Supply	Input: 100-240V AC 50/60Hz Output: 20V, 3.25A
Dimensions	368.5mm (L) x 199mm (W) x 271mm (H)
Weight	2550g
Environment	Operating temperature: -10℃～50℃ (14℉~122℉) Storage temperature: -20℃～60℃ (-4℉~140℉) Relative humidity: 5%～95% (Non-condensing)
Certifications	GMS, FCC, CE, CB, ROHS, EN18031
