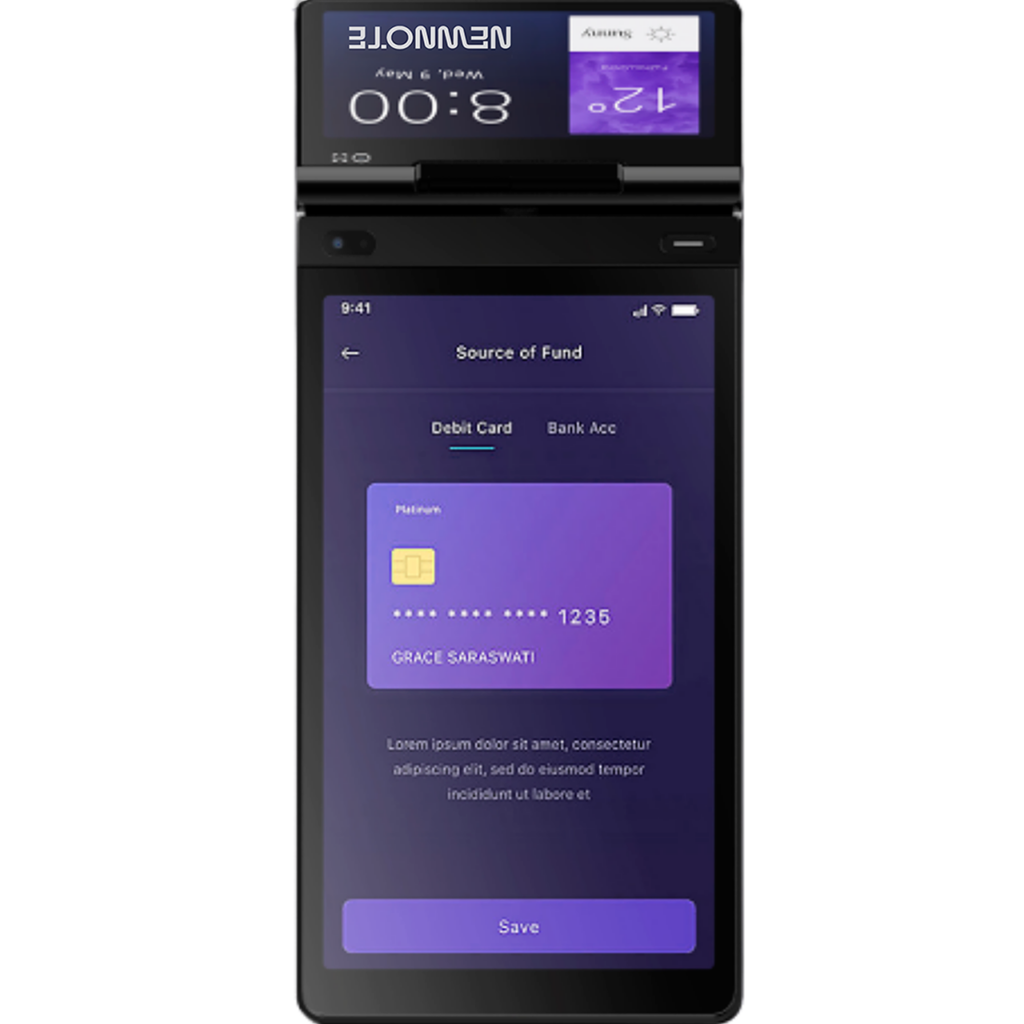

Smart ECR
X800
PORTABLE ECR POS SYSTEM
Portable
Contactless
EMV
PCI PTS
Android
Wi-Fi
- Wide variety of payment and business-management applications at the point-of-sale
- Dedicated merchant and customer displays for seamless interaction
- High-speed transaction processing
- Multiple communication options
| Operating System | Android 10.x |
| Processor | AP: Octa-Core CortexA53, 1.8GHz SP: Arm Cortex M3 security core |
| Memory | 2GB LPDDR4+16GB eMMC | 3GB LPDDR4+32GB eMMC(optional) | 4GB LPDDR4+64GB eMMC (optional) | MicroSD card slot up to 256GB |
| Display | 8-inch portrait IPS display, resolution of 800 x 1280, capacitive multi-touch screen |
| Customer Display | 5-inch landscape IPS display, resolution of 800 x 480, capacitive multi-touch screen |
| Wireless Communication | 4G / 3G / 2G | Wi-Fi (802.11 a/b/g/n/ac) 2.4G&5G | Bluetooth 2.1 EDR/3.0 HS/4.2 LE |
| Positioning | GPS/BEIDOU/GLONASS/GALILEO/QZSS/SBAS |
| Magnetic Card Reader | Triple track, bi-directional, conforming to ISO 7810/7811/7813 |
| Smart Card Reader | EMV L1/L2, conformingto ISO 7816, 1.8V/3V/ 5V, synchronous& asynchronous, T=0 & T=1 |
| Contactless Card Reader | EMV Contactless L1, conforming to ISO 14443 Type A/B, Mifare , Felica |
| Camera | 2 MP fixedfocal frontcamera, support1D/2D code paymeny 2 MP fixed focal rear camera, support 1D/2D code payment |
| Audio | 1 x Speaker, 1 x Microphone, 1 x Audio JACK, support audio recording and media play |
| Keypad | Secure virtual keypad for PIN entry, 1 x power button |
| Printer | High-speed thermal printer, 80mm/s | Paper roll diameter: 50mm | Paper width: 58mm |
| Peripheral Ports | 1 x Type-C, USB2.0 OTG | PogoPins |
| Card Slots | 2 x SIM, 1 x SAM, 1 x SD | 1 x SIM, 2 x SAM, 1 x SD (optional) |
| Battery | Li-ion battery, 3.8V/6000mAh/22.8Wh |
| Power Supply | Input: 100-240V AC 50/60Hz Output: 5.0V DC, 3A |
| Docking Station | Charging base |
| Dimensions | 274.9mm(L)*123.4mm(W)*101.6mm(H) |
| Weight | 895g including battery |
| Environment | Operating temperature: -10℃～50℃ (14℉~122℉) Storage temperature: -20℃～70℃ (-4℉~158℉) Relative humidity: 5%～93% (Non-condensing) |
| Certifications | PCI PTS 6.x, EMVL1/L2, EMV ContactlessL1, PayPass, payWave, American ExpressPay, DiscoverD-PAS, UnionPayQuickPass, JCB, TQM, CE, RoHS, CB, FeliCa, MIC, BIS, Rupay, MCCS, Saber, WEEE & VOC, FCC |
