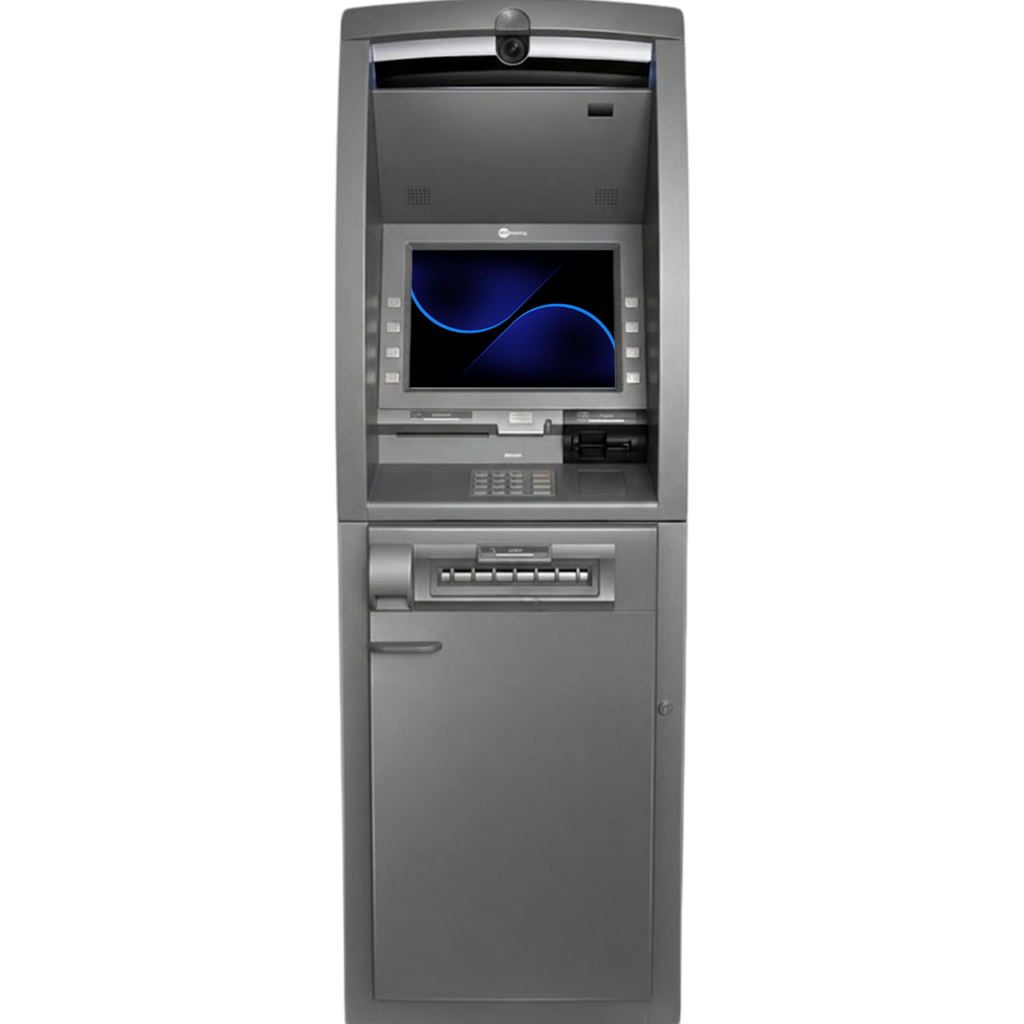

ATM Dispenser
H22N
VERSATILE CASH DISPENSER
- Intrinsic Performance
- Self-developed cash processing module
- Flexible Scalability
- Premium Security
- Optimized Design
| Controlling Unit | Intel H61/H81/Q87,support Core i3/i5/i7 CPU, 256Gb SSD, Max. 32GB memory, DVD RW | Windows® 7/10/11 | TPM2.0 |
| Display | 15’’ TFT color LCD with touch screen | Privacy filter | Advertisement display light panel (opt.) |
| Communication | Standard TCP-IP connection |
| Keypad | 4*4 metal encryptionPIN pad| Dustproof/waterproof/vandalresistant| PCI5.x compliant| EMV certified |
| Printer | 80mm 203DPI graphical thermal printer | Capture and retract capability |
| Card Reader | Motorized card reader | DIP card reader (opt.) | Contactless smart card reader/writer (opt.) | EMV Level 1 and Level 2 compliant | Anti-skimming design | Card return on power failure (opt.) | Retract card capacity: max 30 cards (opt.) |
| Banknote Processing Unit | High-speed bulkdispenser: Dispensingspeed: 7 notes per second| Max. 60 notes per transaction| Upto 4 cassettes| Cassettecapacity: max. 3,500 notes Reject/Retractcapacity: max. 300 notes |
| Security | Electronic lock | Mechanical key lock |UL & CEN Safe | PCI 5.x compliant EPP | PIN Pad shield | Customer awareness mirror | EMV Level 1 certified card reader | Anti-Skimming electromagnetic interference device | Anti jackpotting features |
| Maintenance | 10.4'' LCD service panel with touch screen (available on rear access model) Front, rear and side access |
| Dimensions | 1646mm (H) x 490mm (W) x 1080mm (D) |
| Weight | 533kg |
| Environment | Indoor: 0℃～40℃ (32℉~104℉) Outdoor: -10℃～50℃ (14℉~122℉) (with optional heatingunit) Relativehumidity: 20%to 95% (non-condensing) |
| Type | Through-the-Wall |
| Access | Rear |
